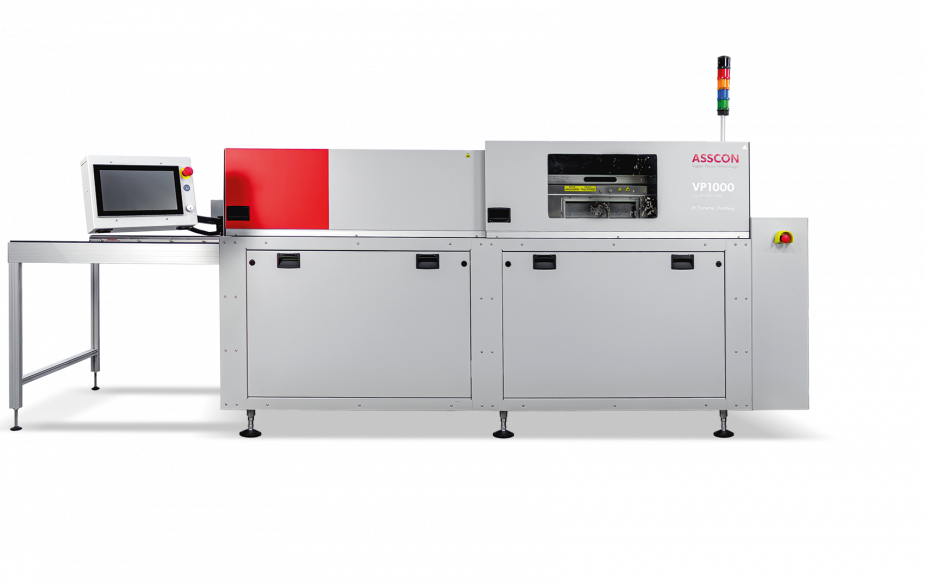

VP1000-1080 / VP1000-1580
Stand-alone systems for the production of large formats
Features
The large workpiece carrier can be flexibly loaded up to a maximum product weight of 15 kg.
Large workpiece carrier 610 x 610 mm
Allows real-time measurement of each soldering process at product level and automatic creation and control of the soldering profile.
Dynamic Profiling
Permanent filtration system fitted as standard to reduce residues as much as possible.
Permanent Filtration System
Batch system is designed for the requirements of 24/7 series operation.
Designed for 24/7 series operation
The new user interface with touch display enables easy and intuitive operation.
Intuitive operation
The concept
The VP1000-1080 / VP1000-1580 is the ideal solution for efficient and precise large-format production. With its generous workpiece carrier of up to 1000 x 800 mm or 1580 x 1000 mm, it enables large assemblies to be soldered quickly and evenly, which significantly speeds up and optimizes your production processes.
By loading the video, you agree to YouTube's privacy policy.
Learn more
ASSCON VP1000-1080 vapor phase soldering system for large formats
Details
Workpiece carrier format
1000 x 800 mm
Maximum solder weight
15 kg (optional 20 kg)
Maximum solder height
60 mm
Maximum transport clearance
100 mm
Power Supply
400 V / 3 / N / PE 50 Hz
Connection Load
15,3 kW
Average energy consumption
5,8 kWh
Oxidation-free preheating and soldering process
Continuously adjustable temperature gradient through sensor-based profiling
Dynamic Profiling and optional Dynamic Profiling PLUS+
Can be used in 24/7 series operation
2-Chamber-System
Low medium consumption
Internal memory of up to 500 soldering programs
Cost-effective soldering system for the highest technological requirements
Workpiece carrier format
1500 x 800 mm
Maximum solder weight
15 kg (optional 20 kg)
Maximum solder height
60 mm
Maximum transport clearance
100 mm
Power Supply
400 V / 3 / N / PE 50 Hz
Connection Load
20,0 kW
Average energy consumption
7,2 kWh
