VP2200-100 / VP2200-100 vacuum inline

High-performance inline system for large series

Features
Two models
Pictures

Features

Transfer from and to the line via pin chains. Communication via SMEMA, Hermes or optionally via line control computer.

Full line integration

Cycle times of up to 20 seconds per assembly are possible.

High throughput

Dual lane transport for particularly high throughputs with maximum product widths of 250 mm (230 mm with vacuum).

Dual lane transport

With the longboard option, products up to a length of 1,200 mm (vacuum 1,000 mm) can be processed.

Maximum solder length up to 1,200 mm

All inline systems feature a permanent filtration system to minimize contamination of the heat transfer medium as much as possible.

Pemanent filtration system

The new user interface with touch display enables easy and intuitive operation.

Intuitive operation

Codes can be read inline via code scanners to ensure traceability.

Full traceability capability

More features

Perfect solder joints thanks to the use of advanced technology
No overheating or destruction of electronic components
Product changing without waiting times
Low overall running costs
Robust design for serial production
Low maintenance and smooth transport

The concept

Full inline integration and no need for workpiece carriers, this is the focus of ASSCON´s vapor phase inline soldering systems. The simple transfer and takeover of PCBs via pin chains characterize this type of inline system. Electrically width-adjustable transport systems allow fast and uncomplicated adaptation to changing products and thus offer the flexibility required in today’s modern electronics production. The integration into inline control computers is also possible. Full automation combined with the highest quality in the process is the guiding principle here.

Flexible production on the line – the two variants.

VP2200-100: Modular system for series production with complete inline integration in the SMT line offers maximum flexibility. Reduction of sink rates thanks to the optionally available and retrofittable vacuum module to meet future requirements.

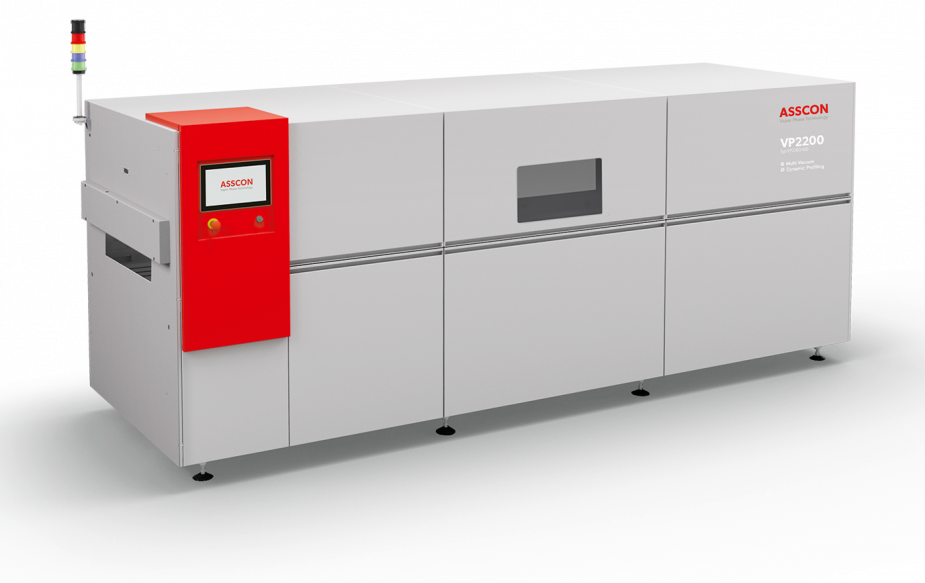

VP2200-100

With a maximum soldering length of 1,200 mm and a maximum width of 600 mm, it is ideal for all types of soldering tasks. At the same time, the system remains very compact in terms of its dimensions.

Maximum solder length (Loading 2 to 6 PCBs)

175 to 600 mm (see details)

Option longboard

Assemblies up to 1,200 mm in length

Maximum transport width

600 mm

Maximum solder height

60 mm

Maximum component height below

20 mm

Power supply

400V/3/N/PE- 50 Hz/60 Hz
