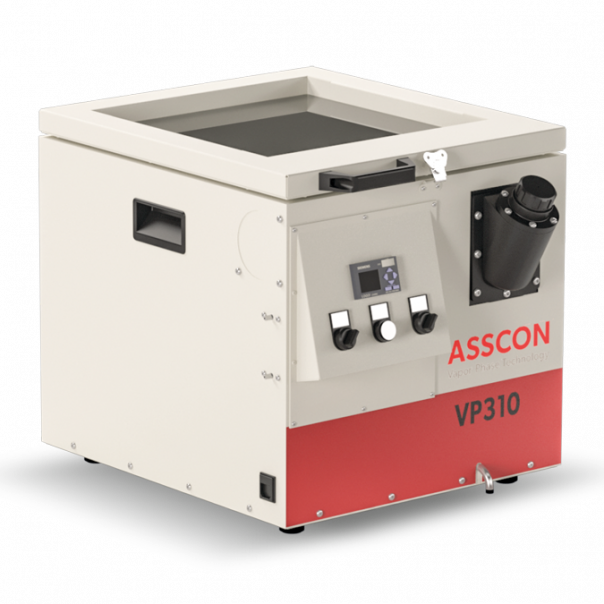

VP310

Top-Loader systems for prototypes and small series production

Features

Due to its compact design, the VP310 can be set up and put into operation regardless of its location.

Compact design

The workpiece carrier with dimensions of 300 x 300 mm can be loaded flexibly.

Solder format up to 300 x 300 mm

More features
  • Perfect solder joints thanks to the use of advanced technology
  • No overheating or destruction of electronic components

The concept

Soldering out of the trunk! This concept was behind the development of the smallest ASSCON vapor phase soldering system. Due to its compact design, this equipment can be used without any restrictions wherever a normal 240V power connection is available. Despite its compactness, the system also meets all requirements for safe operation for the operator. As with all our products, CE marking is a matter of course for our smallest system!

In combination with the patented ASSCON desoldering system, the unit is also very well suited for the repair of assemblies.

Details

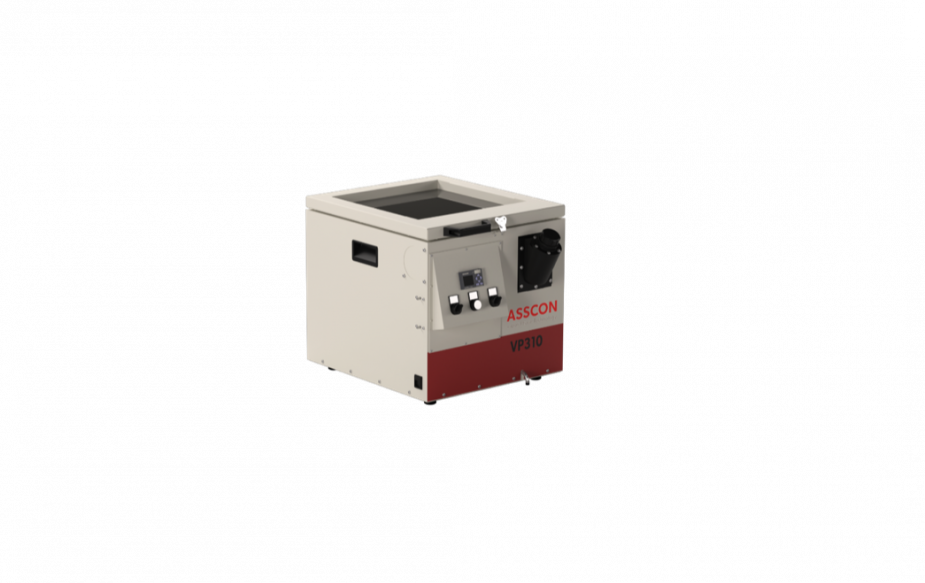

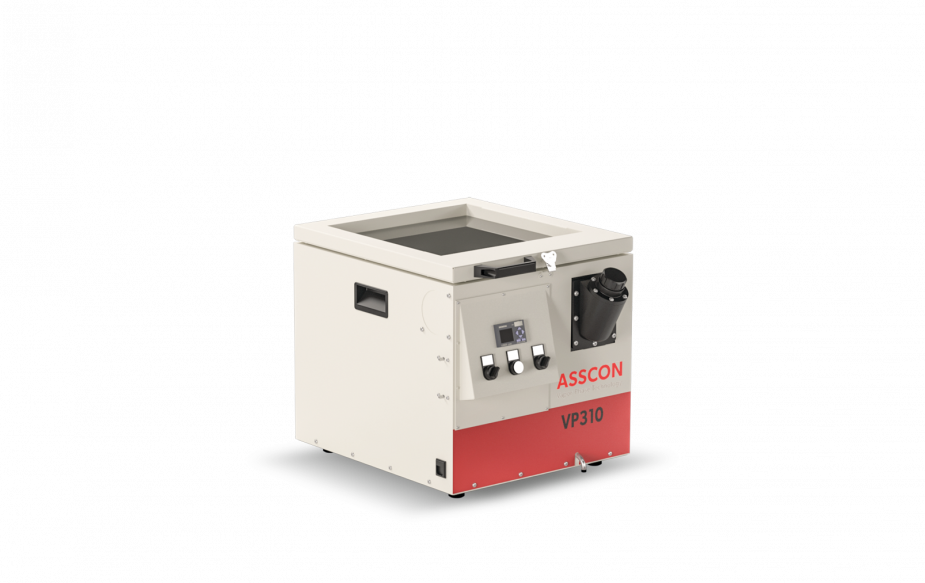

VP310

The compact unit was developed for use in the laboratory and for special applications. It is particularly suitable for test soldering, for qualification of the soldering process and for the soldering of sample assemblies.

Workpiece carrier format

300 x 300 mm

Maximum solder height

50 mm

Power supply

240 V / 50 Hz / 60 Hz

Connection load

2,0 kW

Average energy consumption

0,75 kWh

Oxidation-free preheating and soldering process

Safe SMT soldering of individual assemblies

Laboratory use for qualification and testing of soldering processes

Quality control of solder pastes and printed circuit boards

Assembly repair, desoldering and re-soldering of components
