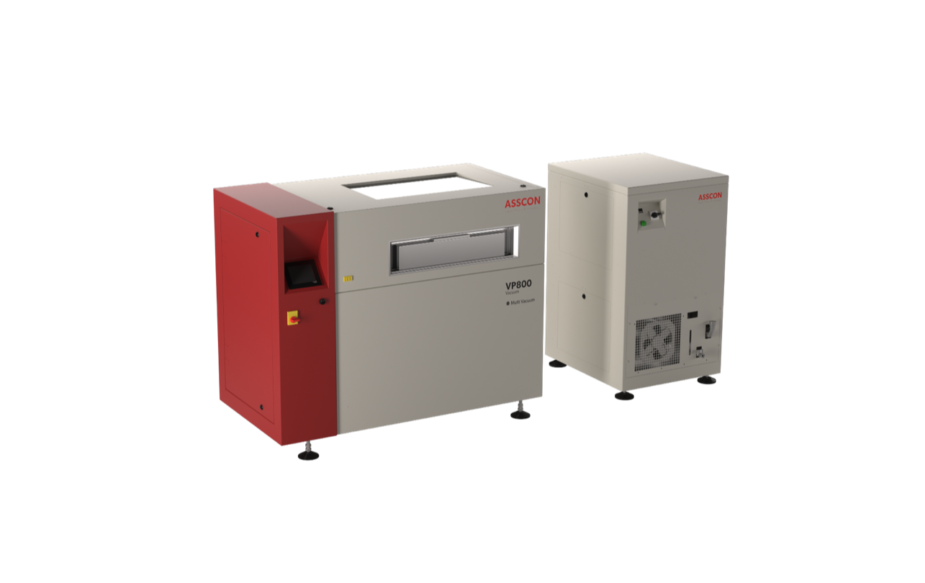

VP800 series

Stand-Alone system für small series production, prototyping und labratory

Features
Three models
Downloads

Features

At just 1.45 x 0.76 m (length x width), the VP800 can be used in most manufacturing operations without the need for structural modifications.

Small footprint

Freely loadable workpiece carrier provides maximum flexibility in production.

Flexible loading on workpiece carrier

Achieve the highest possible soldering quality with the VP800 and Multi Vacuum technology. Void rates <1 % are possible.

Optional and retrofittable Multi Vacuum Module

learn more

Permanent filtration system installed as a standard to reduce contamination as much as possible.

Permanent Filtration Systems

With the optional code scanner, product codes can be captured on the assembly and then linked to the solder profiles for traceability.

Optional: Code Scanner for Traceability

More features

Perfect solder joints thanks to the use of advanced technology
No overheating or destruction of electronic components
Low overall running costs
Robust design for serial production
Low maintenance and smooth transport

The concept

Maximum flexibility and optimum soldering quality are essential features of ASSCON stand-alone vapor phase soldering systems. By using workpiece carriers, these systems are excellently suited for small and large production quantities as well as for any design and size of assemblies. Due to their compact design, the multi-chamber systems can find a place in almost any production. The conception as batch systems allows an island production. In this way, the system can be fed from a wide variety of production stations.

With the patented Multi Vacuum technology, voids in solder joints are reduced and void rates <1% are achievable. The vacuum module, which can be switched on during the process, is located outside the soldering area (Clean Vacuum Technology) and therefore requires very little maintenance.

learn more

Three models

VP800basic

The VP800 basic is the entry-level model in the VP800 series. Due to their very compact design, the systems of the VP800 series are particularly suitable for users who process applications with frequently changing products in small batches. Due to the universal application possibilities, the systems can also be used very well in prototyping and laboratory as well as for process qualification.

Workpiece carrier format

610 x 460 mm

Power supply

400V/3/N/PE- 50 Hz/60 Hz

Average energy consumption

1,8 kWh

Ready for operation

ca. 30 min

Continuously adjustable temperature gradient through Sensor Based Profiling

Oxidation-free preheating and soldering process

Automatic peak temperature detection guarantees safe and fully completed soldering process

Leaded applications can be soldered in lead-free process environment

Internal memory for 10 soldering profiles

Pump filtration system

VP800

Due to the very compact design, particularly suitable for users who process applications with frequently changing products in the small series range. Due to the universal application possibilities, the systems can also be used very well in prototyping and laboratory as well as for process qualifications.

Workpiece carrier format

610 x 460 mm

Power supply

400V/3/N/PE- 50 Hz/60 Hz

Average energy consumption

1,8 kWh

Ready for operation

ca. 30 min

Continuously adjustable temperature gradient through Sensor Based Profiling (Sensor Based Profiling is deactivated in vacuum mode)

Oxidation-free preheating and soldering process

Automatic peak temperature detection guarantees safe and fully completed soldering process

Leaded applications can be soldered in lead-free process environment (not in vacuum operation)

... additionally equipped with a permanent filter system

Extended memory for over 1000 soldering profiles

The vacuum option can be flexibly retrofitted

VP800 vacuum

Optionally, the system can be equipped with the patented Multi Vacuum technology. A vacuum module that can be switched on during the process reduces the voids in the solder joints and is extremely low-maintenance. The vacuum module can be retrofitted.

Workpiece carrier format

480 x 295 mm

Power supply

400V/3/N/PE- 50 Hz/60 Hz

Average energy consumption

2,2 kWh

Ready for operation

ca. 60 min

... and additionally in the vacuum version

Adjustable vacuum guarantees optimum, void-free solder joints

Simple switching on and off of the vacuum process ensures maximum flexibility in production

The compact technology module enables space-saving installation
