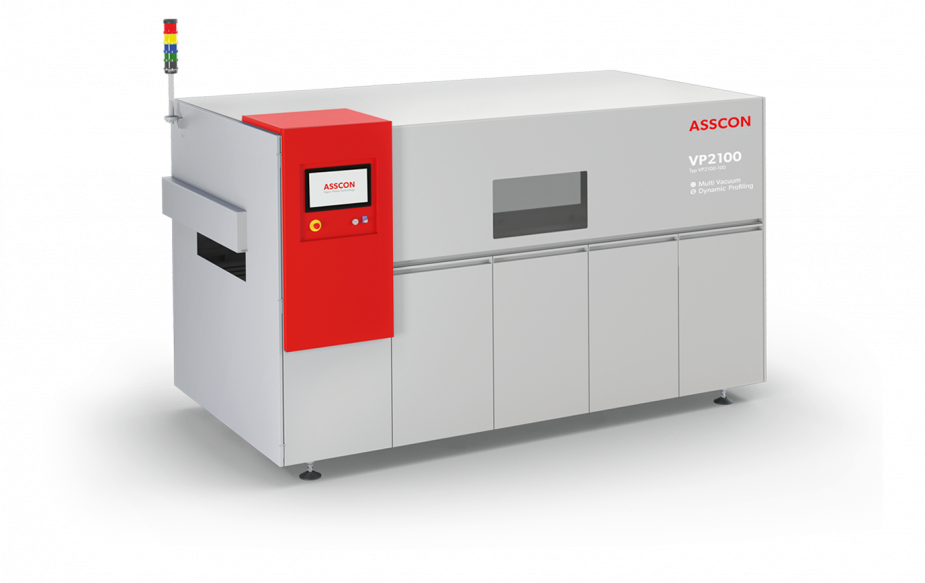

VP2100 / VP2100 vacuum

Compact inline systems for serial production

Features

With a space saving length of only 2.70 m, the system can be integrated into nearly every production line.

Space-saving integration into the entire production line

Transfer from and to the line via pin chains. Communication via SMEMA or optionally via line control computer.

Full inline integration

PCBs up to a size of 750 x 620 mm can be soldered. The maximum size for the vacuum version is 620 x 520 mm.

Soldering format up to 750 x 620 mm

Permanentfiltersystem

All inline systems are equiped with a permanent filtration system to reduce contamination as much as possible.

Permanent Filtration Systems

The new user interface with touch display enables easy and intuitive operation.

Intuitive operation

Codes can be read inline via code scanners to ensure traceability.

Full traceability capability

Further features
  • Optional and retrofittable vacuum
  • Perfect solder joints thanks to the use of advanced technology
  • No overheating or destruction of electronic components
  • Low overall running costs
  • Robust design for serial production
  • Low maintenance and smooth transport

The concept

Full inline integration and no need for workpiece carriers, this is the focus of ASSCON´s vapor phase inline soldering systems. The simple transfer and takeover of PCBs via pin chains characterize this type of inline system. Electrically width-adjustable transport systems allow fast and uncomplicated adaptation to changing products and thus offer the flexibility required in today’s modern electronics production. The integration into inline control computers is also possible. Full automation combined with the highest quality in the process is the guiding principle here.

With the patented Multi Vacuum technology, voids in solder joints are reduced and void rates <1% are achievable. The vacuum module, which can be switched on during the process, is located outside the soldering area (Clean Vacuum Technology) and is therefore extremely low in maintenance.

learn more

Two models

VP2100-100

The soldering chamber has been enlarged to 750 x 620 mm. Both smaller assemblies up to a load of four in the batch and larger assemblies up to the maximum size of the soldering chamber can be processed.

Transportation type

Single Lane

Maximum solder format

up to 750 x 620 mm

Maximum PCB length - 2 PCB loading

up to 370 mm

Maximum PCB length - 3 PCB loading

up to 235 mm

Maximum PCB length - 4 PCB loading

up to 165 mm

Maximum component height at top

60 mm

Connection load

9,6 kW

Time to operation

ca. 30 min

Perfect solder joints thanks to the use of advanced technology

Reproducible process conditions

No overheating or destruction of electronic components

Low energy costs through intelligent energy management

Low overall running costs

Full traceability

Product changeover without waiting times

VP2100-100 vacuum

Optionally, the system can be equipped with the patented Multi Vacuum technology. A vacuum module that can be switched on during the process reduces the voids in the solder joints and is extremely low in maintenance. The vacuum module can also be retrofitted.

Transportation type

Single Lane

Maximum solder format

up to 620 x 520 mm

Maximum PCB length - 2 PCB loading

up to 290 mm

Maximum PCB length - 3 PCB loading

up to 180 mm

Maximum PCB length - 4 PCB loading

up to 125 mm

Maximum component height at top

60 mm

Connection load

15,5 kW

Time to operation

ca. 60 min

... and additionally in the vacuum version

Adjustable vacuum guarantees optimum, void-free solder joints

Simple switching on and off of the vacuum process ensures maximum flexibility in production

Multi Vacuum process

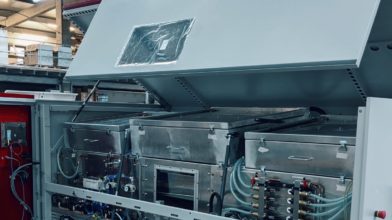

Pictures VP2100 / VP2100 vacuum

YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

PCB transport VP2100-100/VP2100-100 vacuum

YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

Our VP2100-100 vacuum - Compact inline systems for serial production
